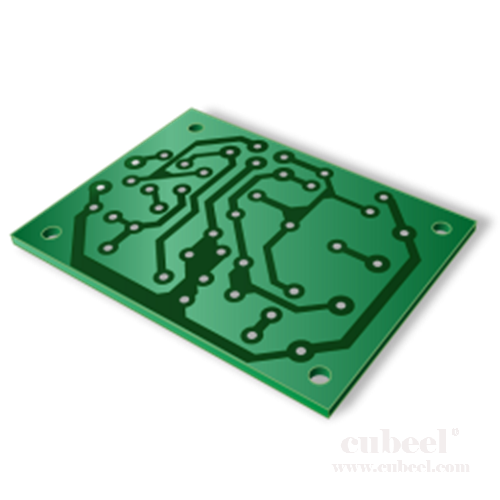

Single sided PCB

Material: FR4

Board Thickness: 3.2mm

Copper Thickness: 1oz

Surfase finish: HASL

Description: Single sided PCB

Applications:

Medical Equipment

Vehicle Device

Industrial Equipment

Security Device

Power Supply Device

Communication Device

Consumer Electronics Device

Computer Products

Process parameters:

Content	Capability
Material	FR4, TG130, TG140, TG160, TG170
Surface treatment	HASL,Chemical Tin,ENIG(Immersion GOLD),OSP,IMT,Plating silver,GOLD Finger
Surface treatment
Layers	Single-sided,double-sided,4 layers, 6,8,10,12 Layers
Maxi. board size	800mmX508mm
Line width/space	0.1mm/ 0.1mm
Board thickness	0.2mm-4mm
Min.tolerance of Board thickness	+/-8% - 10%
Copper foil thickness	Out Layer: 17.5um/35um/70um/105um/140um/175um Inner Layer: 17.5um/35um/70um/105um/140um
Copper foil thickness
Outline Tolerance	CNC routing:+/-0.1mm , Punching: +/-0.1mm
V-CUT registration	+/-0.15mm
PTH hole copper thickness	15um-50um
Warp and twist	<=1%
Min. registration of hole position	+/-3mil(+/-0.76mm)
Min.punching hole	0.8mm(Board thickness below 1.0mm .)
Min.Punching Square slot	(Board thickness below 1.0mm, 1.0mmX1.0mm)
Registration of printed circuit	+/-0.076mm
Min.drill hole diameter	0.2mm
Min.tolerance of hole diameter	+/-0.05mm
Thickness of surface treatment	Plating Gold:(Ni4um-6um ,Au 0.1um-0.5um), Immersion GOLD: (Ni 5um-6um,Au:0.0254um-0.127um), Plating Silver:(Ag 5um-8um),



V-CUT degree tolerance	+/-5(degree)
V-CUT Board thickness	0.6mm-3.2mm
Min.Legend width	0.1mm
Min.Solder mask width	0.1mm
Min.Solder mask ring	0.05mm
