Rigid PCB

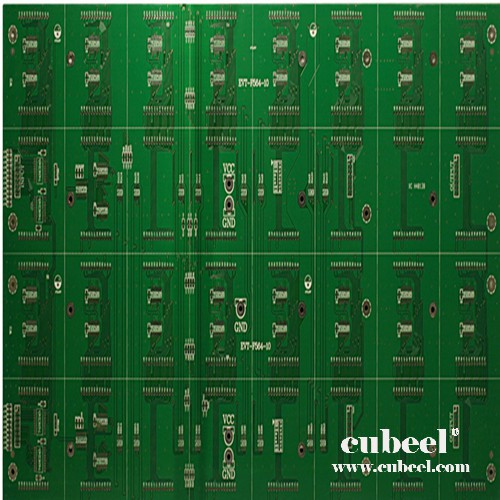

Double sided HAL rigid

  • Product ID:Rigid PCB
  • QQ:253584963
  • Phone: 0086-13590209274
  • Tel: 0086-755-29709766
  • Email: henry@cubeel.com
  • Time: 2019-09-18 03:58:40
  • FEEDBACK

Material: FR4

Board Thickness: 1.6mm

Copper Thickness: 1oz

Surfase finish: HASL Lead Free

Description: Double sided HAL rigid PCB board


Applications:

Medical Equipment

Vehicle Device

Industrial Equipment

Security Device

Power Supply Device

Communication Device

Consumer Electronics Device

Computer Products

Process parameters:

Content Capability
Material FR4,  TG130, TG140, TG160, TG170
Surface treatment HASL,Chemical Tin,ENIG(Immersion GOLD),OSP,IMT,Plating silver,GOLD Finger
Layers Single-sided,double-sided,4 layers, 6,8,10,12 Layers
Maxi. board size 800mmX508mm
Line width/space 0.1mm/ 0.1mm
Board thickness 0.2mm-4mm
Min.tolerance of Board thickness +/-8% - 10%
Copper foil thickness Out Layer: 17.5um/35um/70um/105um/140um/175um
Inner Layer: 17.5um/35um/70um/105um/140um
Outline Tolerance CNC routing:+/-0.1mm , Punching: +/-0.1mm
V-CUT registration +/-0.15mm
PTH hole copper thickness 15um-50um
Warp and twist <=1%
Min. registration of hole position +/-3mil(+/-0.76mm)
Min.punching hole 0.8mm(Board thickness below 1.0mm .)
Min.Punching Square slot (Board thickness below 1.0mm, 1.0mmX1.0mm)
Registration of printed circuit +/-0.076mm
Min.drill hole diameter 0.2mm
Min.tolerance of hole diameter +/-0.05mm
Thickness of surface treatment Plating Gold:(Ni4um-6um ,Au   0.1um-0.5um),
Immersion GOLD: (Ni 5um-6um,Au:0.0254um-0.127um),
Plating Silver:(Ag 5um-8um),
V-CUT degree tolerance +/-5(degree)
V-CUT Board thickness 0.6mm-3.2mm
Min.Legend width 0.1mm
Min.Solder mask width 0.1mm
Min.Solder mask ring 0.05mm
